RIM-162 ESSM Missile: Naval Anti-Air in a Quad Pack

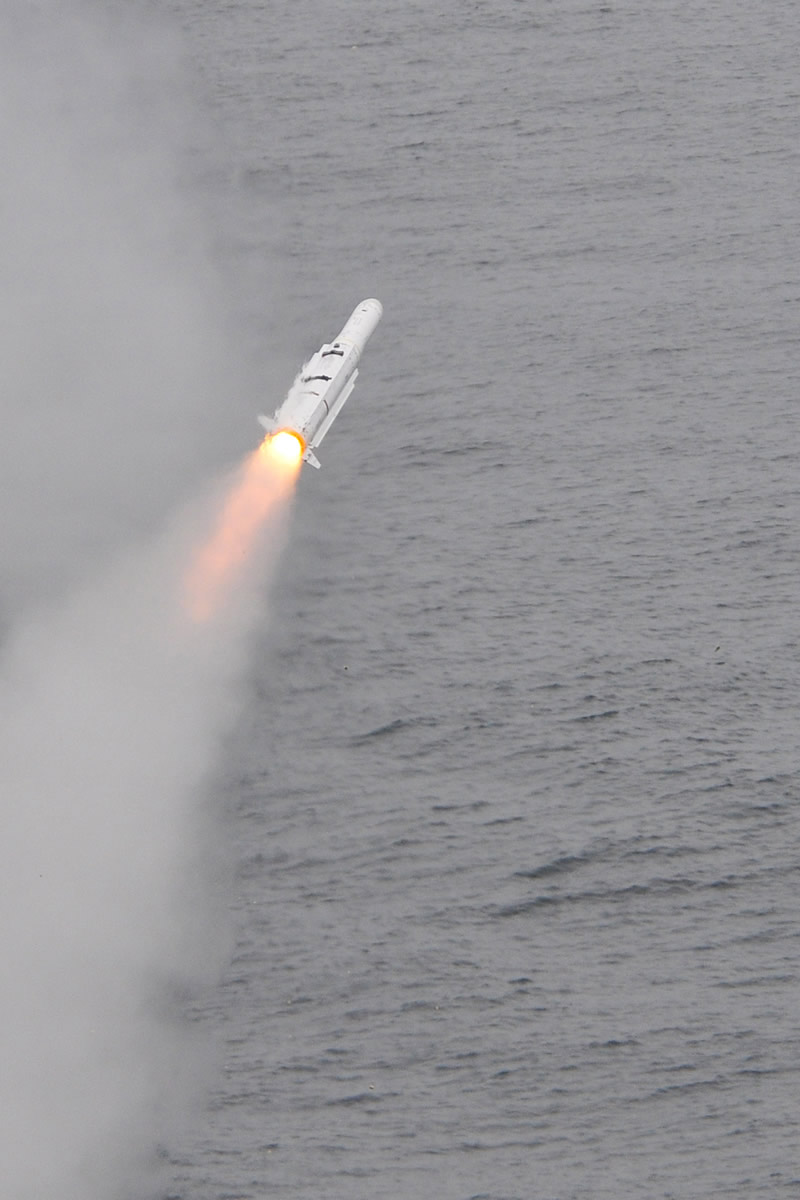

RIM-162: sections (click to view full) The RIM-162 Evolved Sea Sparrow Missile (ESSM) is used to protect ships from attacking missiles and aircraft, and is designed to counter supersonic maneuvering anti-ship missiles. Compared to the RIM-7 Sea Sparrow, ESSM is effectively a new missile with a larger, more powerful rocket motor for increased range, a different aerodynamic layout for improved agility, and the latest missile guidance technology. Testing has even shown the ESSM to be effective against fast surface craft, an option that greatly expands the missile’s utility. As a further bonus, the RIM-162 ESSM has the ability to be “quad-packed” in the Mk 41 vertical launching system, allowing 4 missiles to be carried per launch cell instead of loading one larger SM-2 Standard missile or similar equipment. This is DID’s FOCUS article for the program, containing details about the RIM-162 Evolved Sea Sparrow missile family, and contracts placed under this program since 1999. The Sea Sparrow was widely used aboard NATO warships, so it isn’t surprising that the ESSM is an international program. The NATO Sea Sparrow Consortium includes Belgium, Canada, Denmark, Germany, Greece, The Netherlands, Norway, Portugal, Spain, Turkey, and the USA – as well as non-NATO Australia. […]
